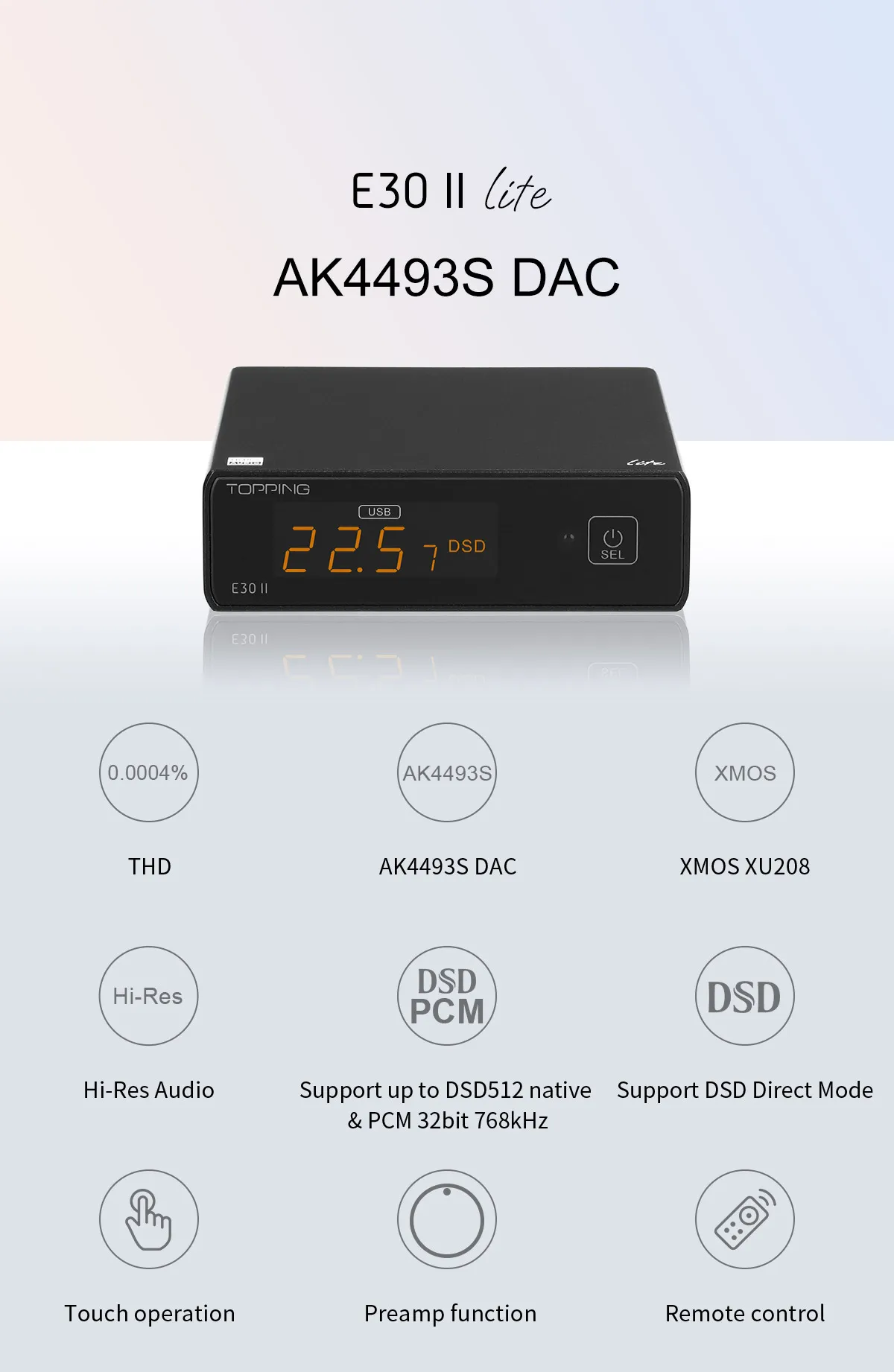

E30 II lite

No reviews

Error Code	Cause Analysis	Troubleshooting / Solution
Auto and -3	Upgraded the incorrect firmware	Consult your dealer for after-sales.
DFU	Possible mis-entry into DFU mode	Unplug the power supply and reboot.
d-3	Unit may be defective	Check the power supply and try with other DC5V power supplies, disconnect all the inputs and outputs of E30II and reboot. If that still not works, unit is considered defective.
Cycle displaying DIR and Err	Unit may be defective	Check the power supply and try with other DC5V power supplies, disconnect all the inputs and outputs of E30II and reboot. If that still not works, unit is considered defective.
Cycle displaying INH and Err	Too high input voltage	Check the power supply and try with other DC5V power supplies.
Cycle displaying INL and Er	Too low input voltage	Check the power supply and try with other DC5V power supplies.
Cycle displaying PN and Err	Unit may be defective	Check the power supply and try with other DC5V power supplies, disconnect all the inputs and outputs of E30II and reboot. If that still not works, unit is considered defective.
